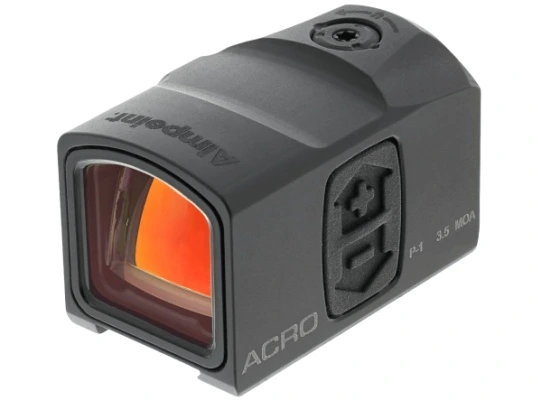

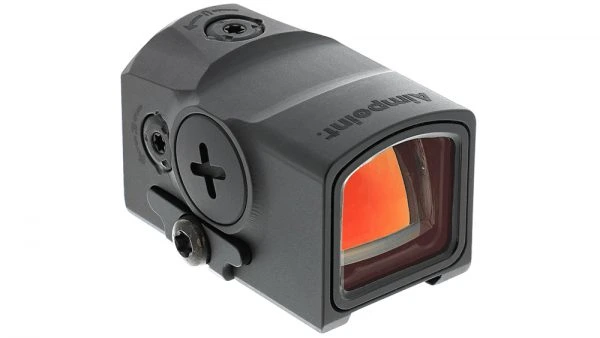

Aimpoint ACRO P-1

The Aimpoint Acro P-1 is developed for use on pistols and other weapon platforms requiring a small enclosed red dot system. It is the only sight in its size category fully tested for shock, vibration, temperature span and other environmental stress. The Acro P-1 is the smallest enclosed system on the market. Tested with 20,000 rounds on a .40 cal pistol slide, this small optic has proven to lead in ruggedness and reliability in its category. The Acro P-1 can be used as a backup sight for magnifying scopes, personal defense weapons.

Features:

– Optimized for pistol and applications which require a low profile red dot system

– The only fully enclosed system in its size on the market

– Designed for direct integration onto pistol slides

– Over 1-year battery operation on position 6 of 10

– Battery installation while optic is still mounted on weapon

– NVD compatible

– Submersible to a depth of 25 m (82 ft)

Specifications:

Optical:

– Operating Principle: Reflex Collimator Sight with LED

– Optical Magnification: 1x

– Aiming Dot Size: 3.5 MOA

– Dot Intensity: Visible Against a Background Iuminance of 0.1 to 55 000 lx

– Optical Signature: No Optical Signature is Visible at 10m Distance, Front Side, on Appropriate Settings with NVD

– Dot Color: Peak Wavelength: 650 ± 15nm

– VD Compatible: Yes

– Optical Coating: Anti-reflex, All Surfaces and Multi-Layer. NVD- Compatible 1, 2, 3

– Clear Aperture: 0.63″ × 0.63″

– Eye Rrelief: Unlimited

Power Supply:

– Battery Type: 3V Lithium Battery, Type CR1225

– Battery Life – Day Time Use: 1 1/2 Years (15 000h) of Continuous use at pos. 6, more than 6 months at pos. 7 and more than 8 years at NVD-setting (pos. 1-4)

– Power Intensity: 4 NVD and 6 Daylight, of which 1 extra bright

Physical:

– Dimensions: 1.90″ x 1.20″ x 120″

– Weight Sight Only: 2.10 oz

– Housing material: High Strength Aluminum

– Housing Finish and Color: Matte Black to Dark Gray

– Housing Anodized: Yes

– Surface Treatment: Anodized, Matte

– Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 17 mm at 100 meters = .6 in at 100 yds

Environmental:

– Temperature Range Operation: -49°F to +160°F

– Temperature Range Storage: -60°F to +160°F

– Temperature Shock: Operable after a temperature shock between -49°F and +160°F

– Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +68°F to +122°F, cyclic

– Submersible: To a depth of 82′

– Shock: Tested with 20,000 rounds on a .40 caliber pistol slide

– Vibration: Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction
